subset the data to only filter() the rows and select() the columns of interest
mutate() existing variables and define new variables
summarize() various aspects of a variable, both overall and by group (group_by())
reshape our data to fit the task at hand (pivot_longer(), pivot_wider())
join() different datasets into one
12.2 Factors
In the remaining days of our data preparation unit, we’ll focus on working with special types of “categorical” variables: characters and factors. Variables with these structures often require special tools and considerations.
We’ll focus on two common considerations:
Regular expressions
When working with character strings, we might want to detect, replace, or extract certain patterns. For example, recall our data on courses:
Focusing on just the sem character variable, we might want to…
change FA to fall_ and SP to spring_
keep only courses taught in fall
split the variable into 2 new variables: semester (FA or SP) and year
Converting characters to factors (and factors to meaningful factors) (today)
When categorical information is stored as a character variable, the categories of interest might not be labeled or ordered in a meaningful way. We can fix that!
Example 1: Default Order
Recall our data on presidential election outcomes in each U.S. county (except those in Alaska):
state_abbr historical county_name total_votes_20 repub_pct_20 dem_pct_20
1 AL red Autauga County 27770 71.44 27.02
2 AL red Baldwin County 109679 76.17 22.41
3 AL red Barbour County 10518 53.45 45.79
4 AL red Bibb County 9595 78.43 20.70
5 AL red Blount County 27588 89.57 9.57
6 AL red Bullock County 4613 24.84 74.70
dem_support_20
1 low
2 low
3 low
4 low
5 low
6 high

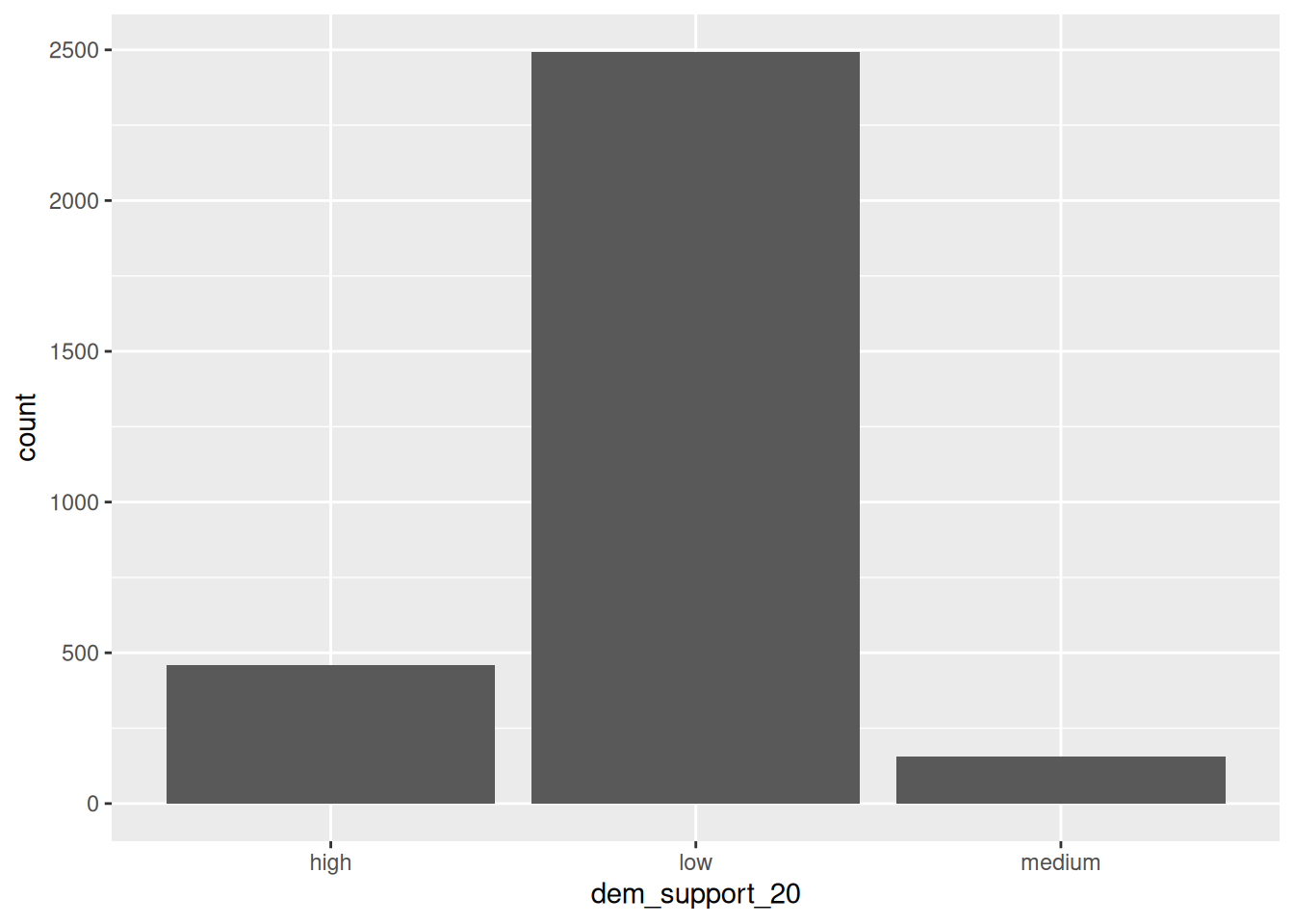

Check out the below visual and numerical summaries of dem_support_20:
low = the Republican won the county by at least 5 percentage points
medium = the Republican and Democrat votes were within 5 percentage points
high = the Democrat won the county by at least 5 percentage points
dem_support_20 n
1 high 458
2 low 2494
3 medium 157
Follow-up:
What don’t you like about these results?
Example 2: Change Order using fct_relevel
The above categories of dem_support_20 are listed alphabetically, which isn’t particularly meaningful here. This is because dem_support_20 is a character variable and R thinks of character strings as words, not category labels with any meaningful order (other than alphabetical):
str(elections)
'data.frame': 3109 obs. of 7 variables:
$ state_abbr : chr "AL" "AL" "AL" "AL" ...
$ historical : chr "red" "red" "red" "red" ...
$ county_name : chr "Autauga County" "Baldwin County" "Barbour County" "Bibb County" ...
$ total_votes_20: int 27770 109679 10518 9595 27588 4613 9488 50983 15284 12301 ...
$ repub_pct_20 : num 71.4 76.2 53.5 78.4 89.6 ...
$ dem_pct_20 : num 27.02 22.41 45.79 20.7 9.57 ...
$ dem_support_20: chr "low" "low" "low" "low" ...
We can fix this by using fct_relevel() to both:
Store dem_support_20 as a factor variable, the levels of which are recognized as specific levels or categories, not just words.
Specify a meaningful order for the levels of the factor variable.
# Notice that the order of the levels is not alphabetical!elections <- elections |>mutate(dem_support_20 =fct_relevel(dem_support_20, c("low", "medium", "high")))# Notice the new structure of the dem_support_20 variablestr(elections)

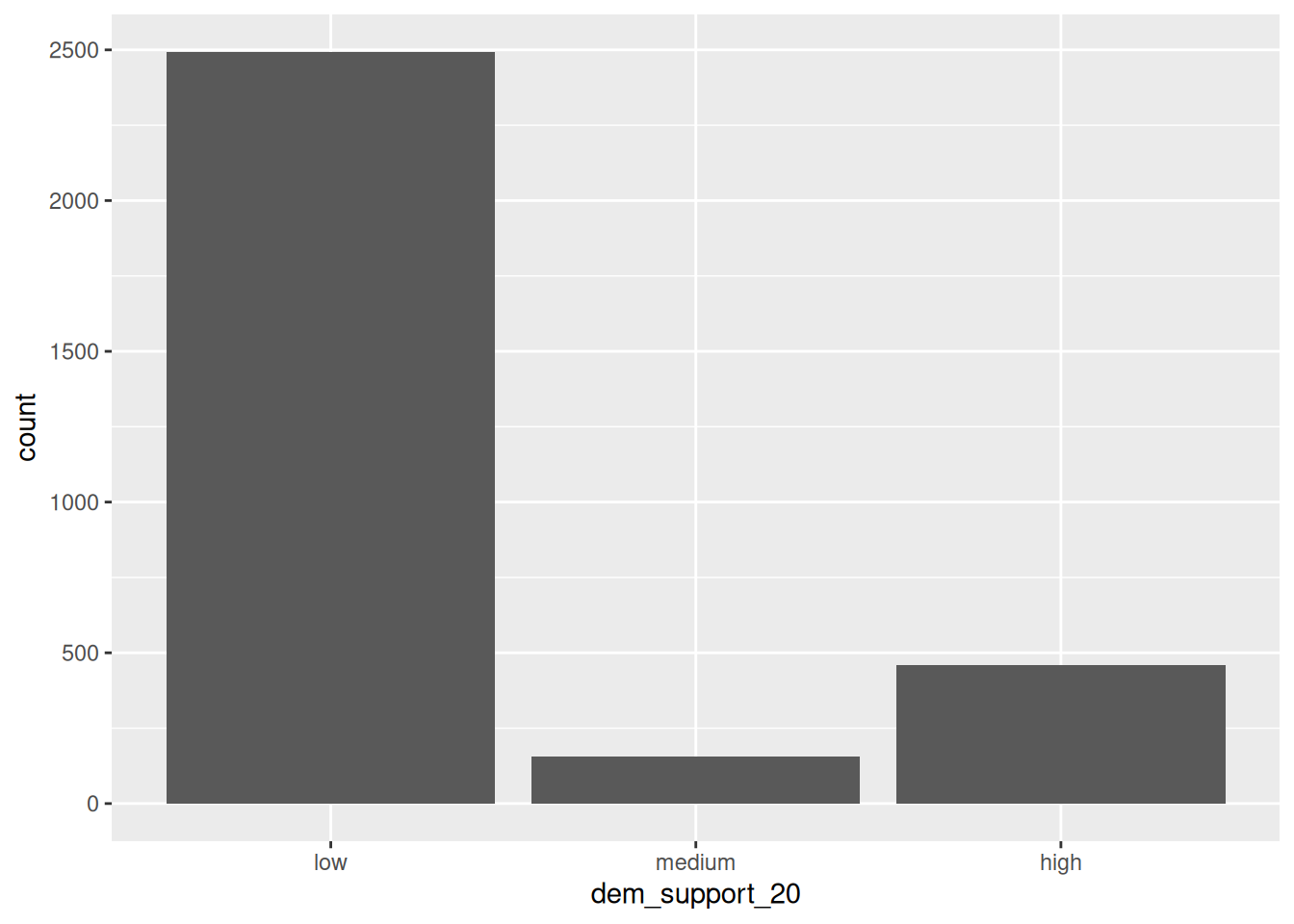

# And plot dem_support_20ggplot(elections, aes(x = dem_support_20)) +geom_bar()
Example 3: Change Labels using fct_recode
We now have a factor variable, dem_support_20, with categories that are ordered in a meaningful way:
elections |>count(dem_support_20)
dem_support_20 n
1 low 2494
2 medium 157
3 high 458
But maybe we want to change up the category labels. For demo purposes, let’s create a new factor variable, results_20, that’s the same as dem_support_20 but with different category labels:
# We can redefine any number of the category labels.# Here we'll relabel all 3 categories:elections <- elections |>mutate(results_20 =fct_recode(dem_support_20, "strong republican"="low","close race"="medium","strong democrat"="high"))# Check it out# Note that the new category labels are still in a meaningful,# not necessarily alphabetical, order!elections |>count(results_20)
results_20 n
1 strong republican 2494
2 close race 157
3 strong democrat 458
Example 4: Re-order Levels using fct_relevel

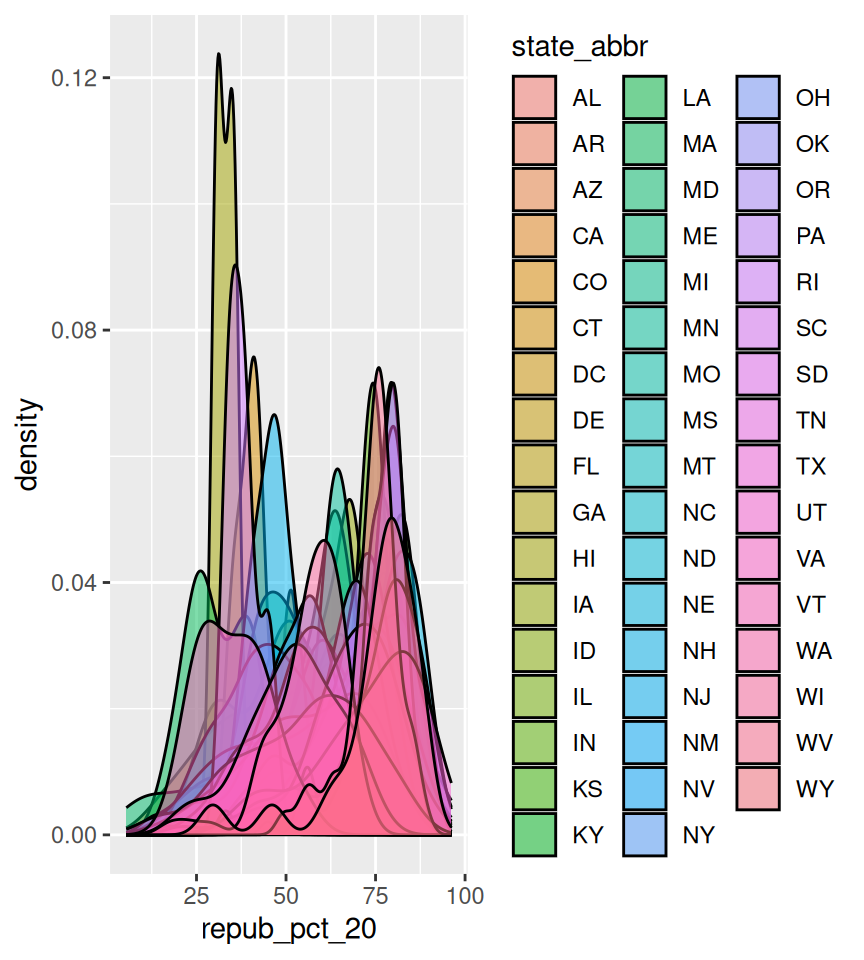

Finally, let’s explore how the Republican vote varied from county to county within each state:
# Note that we're just piping the data into ggplot instead of writing# it as the first argumentelections |>ggplot(aes(x = repub_pct_20, fill = state_abbr)) +geom_density(alpha =0.5)

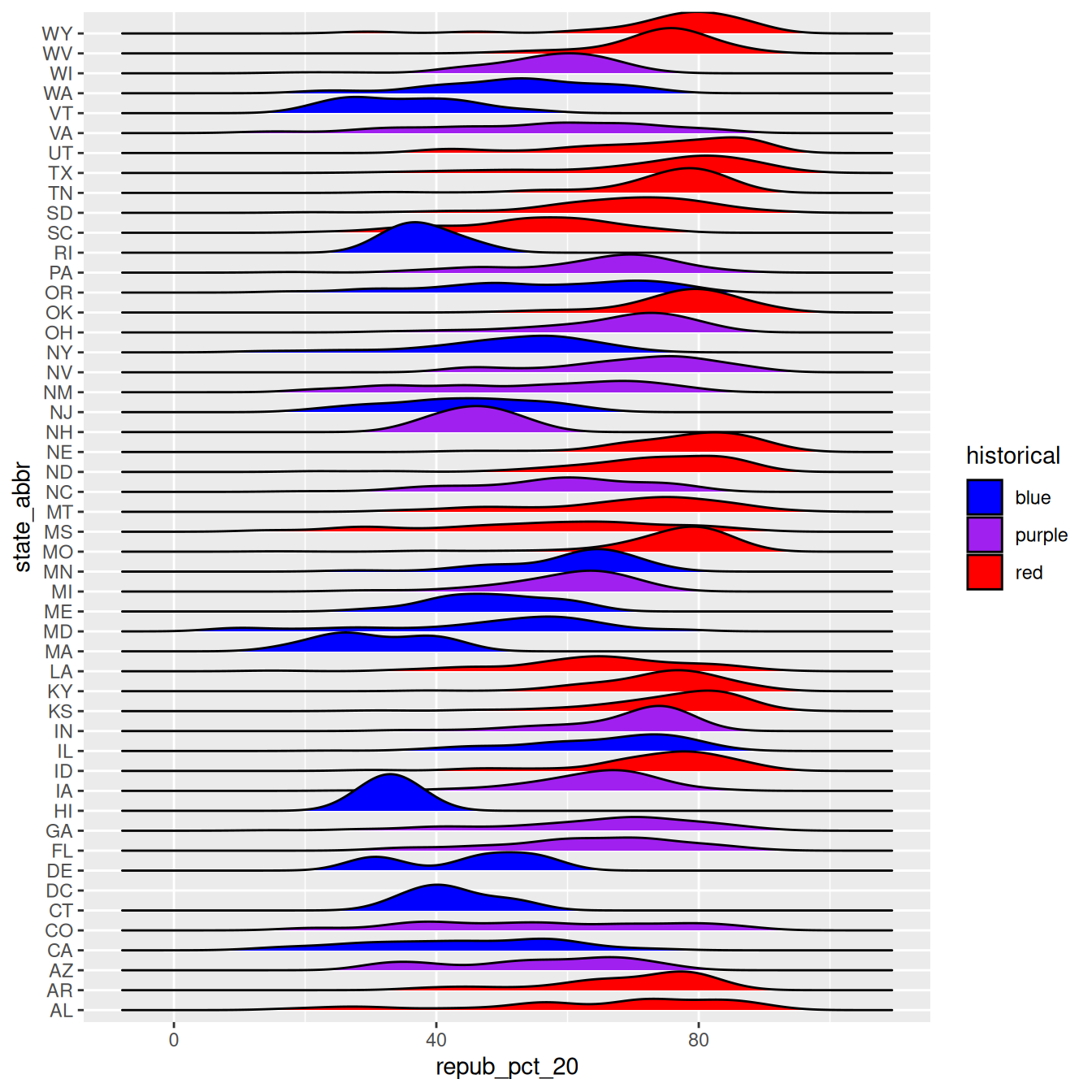

This is too many density plots to put on top of one another. Let’s spread these out while keeping them in the same frame, hence easier to compare, using a joy plot or ridge plot:
library(ggridges)elections |>ggplot(aes(x = repub_pct_20, y = state_abbr, fill = historical)) +geom_density_ridges() +scale_fill_manual(values =c("blue", "purple", "red"))
OK, but this is alphabetical. Suppose we want to reorder the states according to their typical Republican support. Recall that we did something similar in Example 2, using fct_relevel() to specify a meaningful order for the dem_support_20 categories:
We could use fct_relevel() to reorder the states here, but what would be the drawbacks?
Example 5: Re-order levels Based on Another Variable using fct_reorder

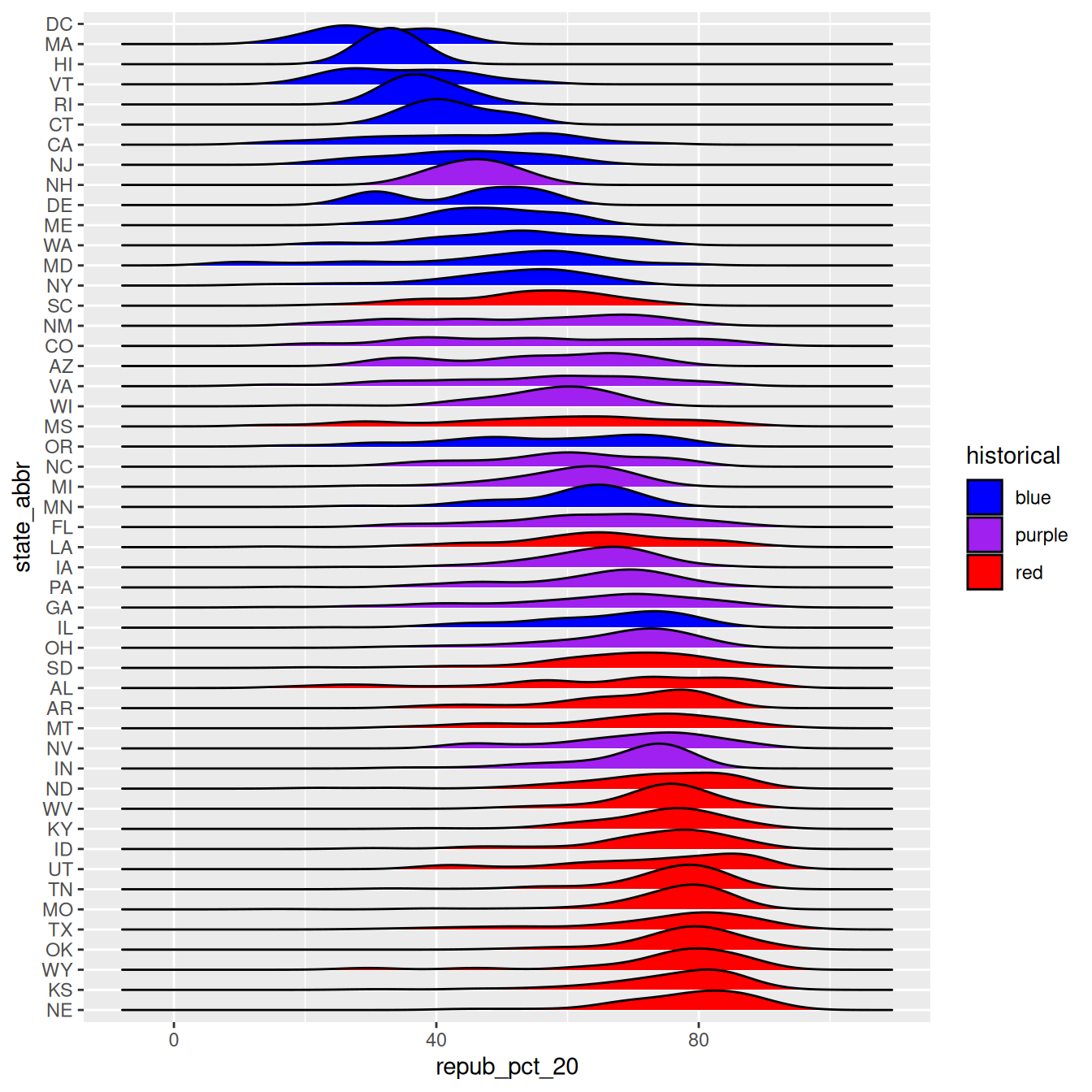

When a meaningful order for the categories of a factor variable can be defined by another variable in our dataset, we can use fct_reorder(). In our joy plot, let’s reorder the states according to their median Republican support:
# Since we might want states to be alphabetical in other parts of our analysis,# we'll pipe the data into the ggplot without storing it:elections |>mutate(state_abbr =fct_reorder(state_abbr, repub_pct_20, .fun ="median")) |>ggplot(aes(x = repub_pct_20, y = state_abbr, fill = historical)) +geom_density_ridges() +scale_fill_manual(values =c("blue", "purple", "red"))

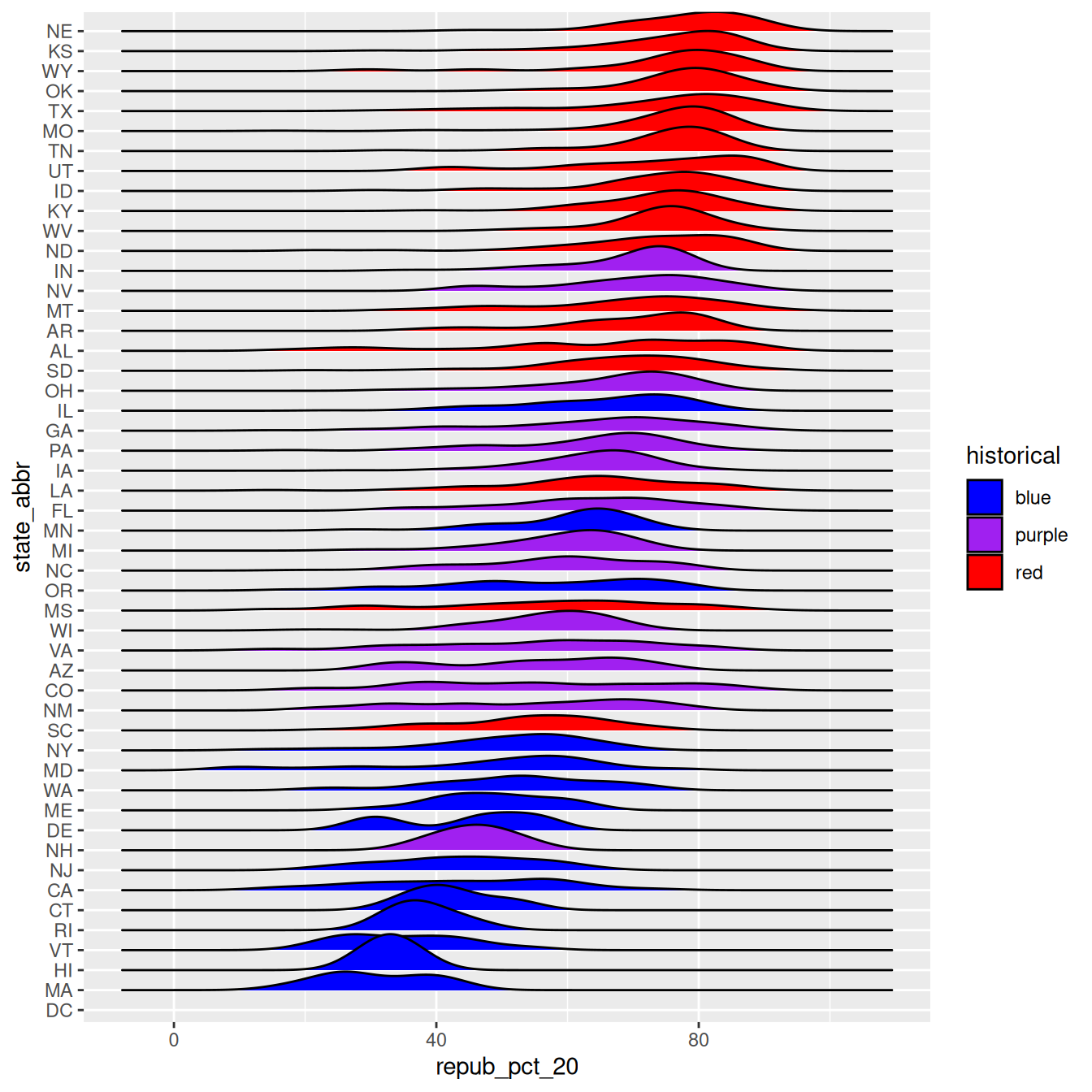

# How did the code change?# And the corresponding output?elections |>mutate(state_abbr =fct_reorder(state_abbr, repub_pct_20, .fun ="median", .desc =TRUE)) |>ggplot(aes(x = repub_pct_20, y = state_abbr, fill = historical)) +geom_density_ridges() +scale_fill_manual(values =c("blue", "purple", "red"))
Summary
The forcats package, part of the tidyverse, includes handy functions for working with categorical variables (for + cats):
Here are just some, few of which we explored above:
functions for changing the order of factor levels
fct_relevel() = manually reorder levels
fct_reorder() = reorder levels according to values of another variable
fct_infreq() = order levels from highest to lowest frequency
fct_rev() = reverse the current order
functions for changing the labels or values of factor levels
fct_recode() = manually change levels
fct_lump() = group together least common levels
12.3 Exercises
Instructions
General
Be kind to yourself.
Collaborate with your assigned partner.
Ask questions when you and your assigned partner get stuck.
The best way to learn is to play around focusing on recognizing patterns then noting them down
Remembering details could be challenging at the beginning but will become natural the more you code.
The solution to the exercise is at the bottom of the page. Check your answers against it.
Launching RStudio
Your portfolio should be opened in RStudio as a project. Check the upper-right corner of RStudio, if your portfolio repository name is shown there, then your are good to go. Otherwise, open GitHub Desktop –> from dropdown menu located on the top-left corner, select your portfolio repository if not selected –> Repository menu –> select Show in Explorer/Finder → double-click the file ending in Rproj
Adding Lesson to Portfolio
NOTE: If the lesson does NOT requires creating a Quarto document, skip the following instructions.
Your portfolio Quarto book project contains qmd files inside the ica folder for some of the lessons. If there is one for this lesson, open it. Otherwise, create a new Quarto document inside the ica folder then include it in the _quarto.yml file in the appropriate location. Ask the instructor if you could not figure out this step.
Click the </> Code button located at the top of this page and copy only the code where the Exercises section starts into the Quarto document of the lesson and solve the exercises. You can also Use your Quarto document to take notes. NOTE: If the code you copied contain reference to other Quarto documents, ie, {{< another_quarto.qmd >}}, remove them. otherwise, you code will not render.
The exercises revisit our grades data:
# Get rid of some duplicate rows!grades <-read.csv("https://mac-stat.github.io/data/grades.csv") |>distinct(sid, sessionID, .keep_all =TRUE)# Check it outhead(grades)
grade n
1 A 1506
2 A- 1381
3 AU 27
4 B 804
5 B+ 1003
6 B- 330
Exercise 1: Changing Order

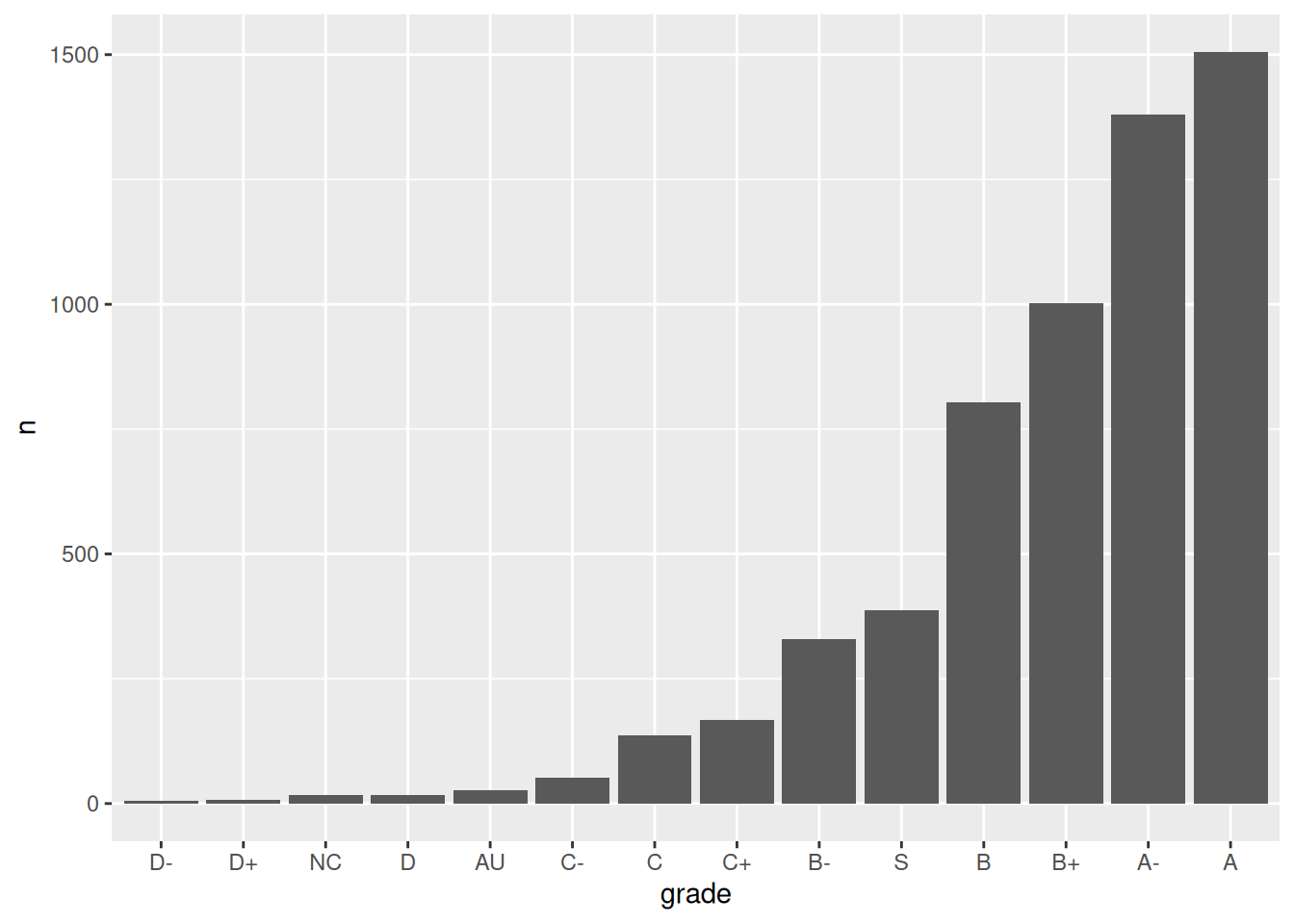

Check out a column plot of the number of times each grade was assigned during the study period. This is similar to a bar plot, but where we define the height of a bar according to variable in our dataset.
grade_distribution |>ggplot(aes(x = grade, y = n)) +geom_col()
The order of the grades is goofy! Construct a new column plot, manually reordering the grades from high (A) to low (NC) with “S” and “AU” at the end:
It may not be clear what “AU” and “S” stand for. Construct a new column plot that renames these levels “Audit” and “Satisfactory”, while keeping the other grade labels the same and in a meaningful order:
# grade_distribution |># mutate(grade = ___(___, c("A", "A-", "B+", "B", "B-", "C+", "C", "C-", "D+", "D", "D-", "NC", "S", "AU"))) |># mutate(grade = ___(___, ___, ___)) |> # Multiple pieces go into the last 2 blanks# ggplot(aes(x = grade, y = n)) +# geom_col()
12.4 Solutions
Click for Solutions
Example 1: Default Orde
The categories are in alphabetical order, which isn’t meaningful here.
Example 4: Re-ordering Levels using fct_relevel
we would have to:
Calculate the typical Republican support in each state, e.g. using group_by() and summarize().
We’d then have to manually type out a meaningful order for 50 states! That’s a lot of typing and manual bookkeeping.

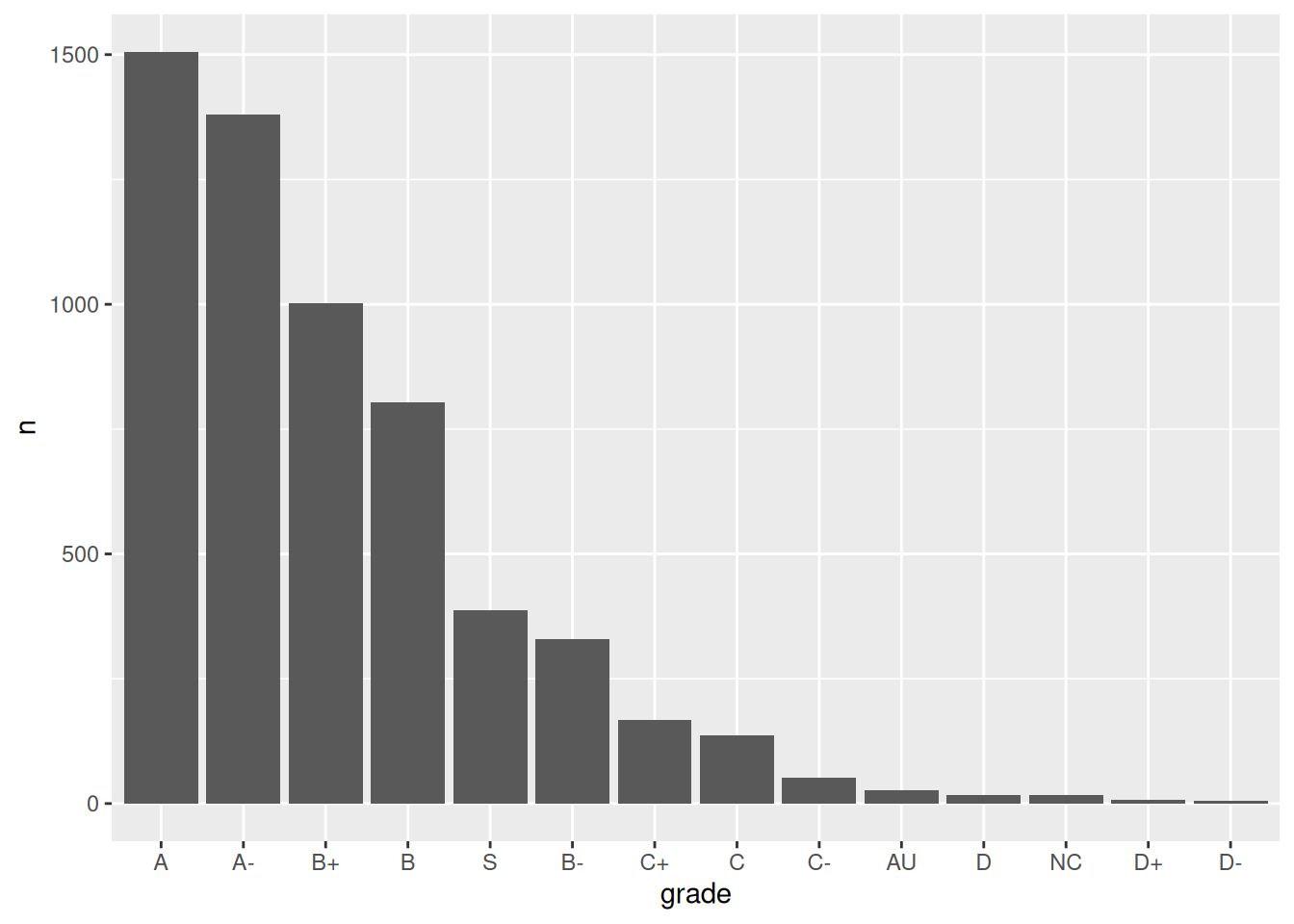

grade_distribution |>mutate(grade =fct_reorder(grade, n, .desc =TRUE)) |>ggplot(aes(x = grade, y = n)) +geom_col()
Exercise 2: Changing Factor Level Labels
grade_distribution |>mutate(grade =fct_relevel(grade, c("A", "A-", "B+", "B", "B-", "C+", "C", "C-", "D+", "D", "D-", "NC", "S", "AU"))) |>mutate(grade =fct_recode(grade, "Satisfactory"="S", "Audit"="AU")) |># Multiple pieces go into the last 2 blanksggplot(aes(x = grade, y = n)) +geom_col()
